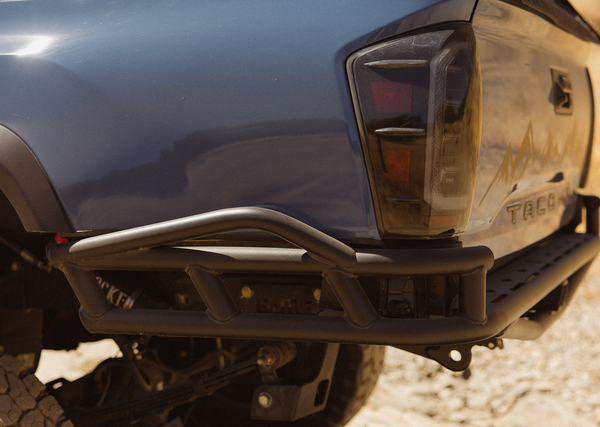

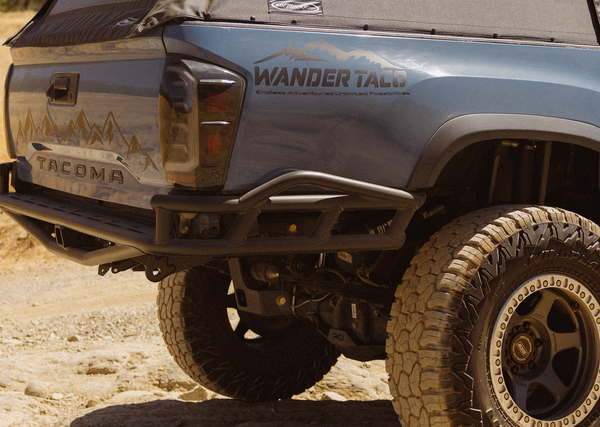

*Pre-Order* 2016-2023 Tacoma "Black Diamond Series" High Clearance Rear Bumper
Looking for the ultimate high clearance rear bumper?! Well, you've come to the right place! Our new "Black Diamond" series 2016-2023 Tacoma high clearance rear tube bumper offers ULTRA high clearance and sleek good looks.
This is the ultimate rear bumper for extreme off road use, offering the MOST departure angles and side clearance we've ever offered in a 3rd gen tacoma bumper. Requires cutting off bed sides at bottom of tail lights!
Specs:
- Fits: 2016-2023 Tacoma models
- 1.75" DOM Tube construction
- 1/4" Steel Mounting plates
- Standard integrated and recessed recovery locations for common 3/4" D-ring.
- Approx. weight: 90lbs.
- Mounts with the 5 factory tow hitch bolt locations per frame rail. (3 side and 2 lower locations per side)
- Gusseted Internal bracing between frame mounting and side section of bumper.
- Includes New LED License Light
- Includes Custom Relentless integrated Flip up license plate mount for clearance on the trail.
- Standard back up light cutouts for the Baja Designs S2 Flush mount lights. and the KC Hi-Lites Flush Mount FE1 (new feature)
- Integrated High Clearance Hitch (Not Load Rated)
- Trailer 7-Pin wiring relocation bracket
- Corner gussets incorporating rock light mounts for a pair of KC Cyclone or Baja Designs Rock Lights.
- Sides are shortened to line up with trimmed fenders/flares.
- Cutting factory bedsides is required for installation.
- Bumpers ship raw/bare steel. A finish must be applied to prevent rust.
Bumper is "backwards" compatible for anyone with our plate high clearance looking to make the switch to this bumper, just cut bedsides in new higher location.
***NOT COMPATIBLE WITH OUR TIRE CARRIER OFFERINGS***
AVAILABILITY:
Pre-Orders are Open from 11/8/24 until 11/15/24. Pre-orders will receive a shorter lead time. These will ship **BEFORE CHRISTMAS**
Pricing and lead times will go up after 11/15/24
ALL BUMPERS SHIP BARE METAL: Bumpers must be coated prior to install or they will rust!
Bumpers ship Freight, please select your appropriate freight option at checkout. We also offer Local Pick Up at checkout.
